Bionic ears let the deaf hear

By Grant Jacobs 17/09/2013 7


There’s a lot of talk about a coming future of ‘bionic’ devices, aiding those with sensory and motor disabilities.

In reality ‘bionic’ sensory devices have already been with us for over 30 years in hundreds of thousands of people. The  cochlear implant is a ‘bonic ear’ that enables many deaf people to hear.

Credit: tabercil. Source: Wikimedia CC 2.0
Credit: tabercil. Source: Wikimedia CC 2.0

They’ve advanced to the point that even tiny kids get them now.

It’s great to watch videos of cochlear implant switch-ons. (You can view some in the Switching on section below.)

The idea of the cochlear implant is remarkable, really.

A semi-circular cut is made behind the ear. A wire is threaded into the cochlear, the fluid-filled spiral-shaped organ in our inner ear lined with hair cells. The wire from the device sends electronic signals to the auditory nerve that the wearer learns to recognise as sound.

Credit: NIH, public domain. Sourced from wikimedia.
Credit: NIH, public domain. Sourced from wikimedia.

The wire leads from a small unit that is placed sealed under the skin. The person wears a device looking like a behind-the-ear hearing aid that is wired to a magnet that is placed on the skin above the internal unit, like in the infant above.

The external magnet is attracted to the internal unit, holding it in place, and the signal is transmitted through the skin as a radio frequency signal that is received by an induction loop in the internal device. The internal device is powered by this transmission.

There is no wire through the skin, as some of the early (single-channel) devices had — these were prone to being a route for infection, one of the many challenges overcome in developing the cochlear implant.

The hearing aid unit has the usual microphones, battery and a digital signal processing chip, that transforms the original microphone signal according to the parameters set by the audiologist as they adapt the device to the wearer. It isn’t a case of instant speech recognition as the device is turned on, but a process of learning to associate the signals with sounds.

cochlear_implant_device-564px
The image is taken from the Hearing Association of New Zealand information card on cochlear implants, available as a PDF file. (Picture there courtesy of Cochlear Ltd.)  The electrode with a spiral end is inserted into the cochlear; the other is a ground wire.

The electrode inserted into the cochlear has several wires, or channels that aim to replicate the frequency-to-place information the cochlear provides to the auditory nerve. In this short video Dr. Douglas Backous, Medical Director of the Center for Hearing and Skull Base Surgery explains what a cochlear implant is,

In a normally-hearing person sound vibrates the (basilar) membrane of the cochlear, moving the hair cells, which stimulate the auditory nerve. Different frequencies of sound dominate different parts of the membrane: high frequencies don’t travel far; low frequencies travel further. This creates a frequency-to-place mapping that our bodies use to identify the frequencies of sound. The electrode of the cochlear implant has several wires (e.g. up to 22) of different lengths, by-passing the hair cells and directly stimulating the auditory nerve. When the audiologist “maps” the input onto the electrodes that the wearer is responding to, they assign higher frequencies to the shorter electrodes and lower frequencies to the longer functioning electrodes, mimicking the frequency-to-place mapping that functions through the basilar membrane.

Cochlear implants are still mostly implanted into one ear, but there is an increased trend to implant both ears giving bi-aural hearing that benefits the wearer.[1]

In New Zealand cochlear implants are funded through Ministry of Health, prioritised to children. A brief introduction is also available on the Hearing Association of NZ cochlear implant information card (PDF file).

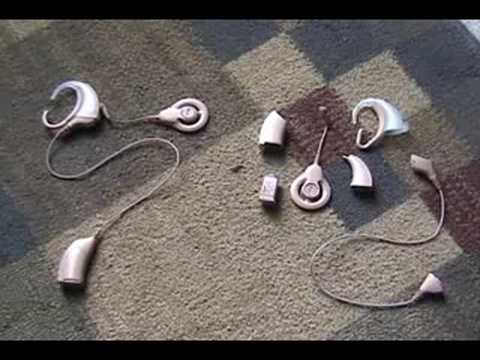

This video offers a breakdown of the components of a typical cochlear implant,

Recognition

This year’s Lasker-DeBakey Clinical Medical Research Award[2] was awarded to Ingeborg Hochmair, Graeme Clark, and Blake Wilson for their work developing the cochlear implant. It‘s one measure of the cachet of these prizes that 83 Lasker awardees have gone on to win Nobel Prizes.[2]

There’s an excellent brief account of main players who developed the modern cochlear implant in an open-access piece for The Lancet, including Dr. House who died last year. (The reference to the modern cochlear implant is no doubt to distinguish the more successful multi-channel devices that are now used and House’s earlier single-channel device.[3])

(An historic aside – a 1974 video from the House Ear Institute.)

http://www.youtube.com/watch?v=GRGWWSxCnRA

It’s good to see recognition of Wilson’s speech processing work in the Lasker-DeBakey Clinical Medical Research Award.[4] (Compare this, for example, with the wikipedia entry for the cochlear implant, which at the time of writing doesn’t mention him by name at all although it mentions that “the signal processing algorithm is also another important block”. Presumably that will be put right with his name being associated with this award. It is, perhaps another useful reminder of the limitations of wikipedia.[5])

Cochlear implants are a fine example of how research draws on skills from disparate sources.[6]

Developing these devices draws on a mix of audiological knowledge, neuroscience and anatomy, surgery techniques, engineering hardware (on several levels), finding the best way of delivering the electrical signals so that they might be perceived by the patient as speech and so on.

Switching on (and parents’ thoughts)

Videos of cochlear implant switch-ons are popular on YouTube. You could spend hours viewing them. I’ve selected a few below. (I can’t show some, like how young Allie holds the plastic coin as if it is sending her the sounds, as some people have chosen to disable embedding[7]. Similarly I would like to have offered some parents’ views as they provide a different perspective.) The first has over 19 million views! –

Nikki’s activation:

This woman tries her hearing playing a xylophone after her CI activation:

Some babies, like Solomon, understandably react with surprise and confusion:

This 8 month old baby is way too adorable not to include:

This is a segment of the New Zealand current affairs program, Campbell Live (from 2007?)

I’m offering Annabelle’s activation for a little balance as it’s easy to think of CIs as ‘instant’ successes:
